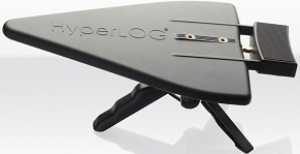

HyperLog 7060

Você esta em: Categoria Antenas HyperLog 7060
AAronia AG
Disponibilidade
Locacao
Valor Sob Consulta
Descrição
Wide Band Log Periodic Directional Antenna HyperLOG 7060 with higher frequency range up to 6GHz which now also covers 5GHz WLan.

Every HyperLOG directional antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality GOLD COATING, a high-tech antenna-case (radome) which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and an SMA connector (18GHz version) with twist protection.

Technical data
• Compatible with any Spectrum Analyzer brand
• Design: Directional Logarithmic-Periodic
• Frequency range: 700MHz to 6GHz
• Max. input power: 50W AM (800MHz)
• Nominal impedance: 50 Ohm
• VSWR: <1:2 (typ.)
• Gain: 5dBi (typ.)
• Antenna factor: See data sheet graph
• RF connection: SMA (f) or N (see optional adapter)
• Tripod connection: 1/4"
• Calibration points: 533 (10MHz-steps)
• Dimensions (L/W/D): 340x200x25 mm
• Weight: 250gr

Highlights:
• Includes exhaustive calibration data (on CD)
• Special designed radome for perfect antenna protection
• Gold coating for stable performance
• Wide bandwidth
• Coverage of various mobile radio frequency ranges
• Suitable for field-strength and EMC measurements due to high precision
• Compact and sturdy design
• Can be used in the lab and for open-field application

Examples for possible analysis and measurements within frequency range (700MHz - 6GHz):
• ISM434
• LTE800
• ISM868
• GSM900
• GSM1800
• GSM1900
• DECT
• UMTS
• WLAN
• Microwave
• Bluetooth
• WiFi
• LTE2.6
• WiMAX
• Directional Radio
• 5GHz WLAN
• etc.
