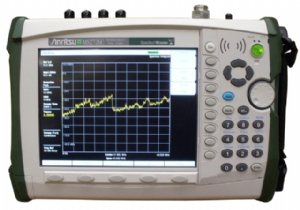

MS2726C

Features
Measure: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Masks
Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
Dynamic Range: > 104 dB in 1 Hz RBW
DANL: -160 dBm in 1 Hz RBW @ 1 GHz preamp On
Phase Noise: -100 dBc/Hz @ 10 kHz offset at 1 GHz
Frequency Accuracy: ± 25 ppb with GPS On
1 Hz to 10 MHz Resolution Bandwidth (RBW)
Traces: Normal, Max Hold, Min Hold, Average, # of Averages
Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
Limit Lines: up to 40 segments with one-button envelope creation
Trace Save-on-Event: crossing limit line or sweep complete
Sweep Modes: Fast, Performance, No FFT, burst detect


Anritsu s latest generation of handheld spectrum analyzers includes the MS2726C Spectrum Master. This represents the company s highest performance handheld spectrum analyzer from the MS272xC family. Exciting new features and options bring more value to the user over our previous generations:








Frequency Coverage - 9 kHz to 43 GHz
Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
Three Sweep Modes - with improved Sweep Speed - up to 100 times faster
Resolution Bandwidths from 1 Hz to 10 MHz
New triggering choices including hysteresis, hold-off, and delay
More zero-span capabilities including 10 MHz RBW & VBW
Enhanced Spectrum Analyzer GUI including large marker display choice
Choice of display options for readability - normal, black and white, night vision, high contrast
On-screen Interference Mapping as part of the Interference Analysis option
LTE Measurements up to 20 MHz
30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal
Burst detect captures 200 µs bursts the first time, every time


The Spectrum Master MS2726C features over 30 analyzers in one to meet virtually every measurement need. In addition to spectrum analysis a user can select optional capabilities and analyzers including:

High Accuracy Power Meter
Interference Analyzer
Channel Scanner
140 MHz Zero-Span IF Output, 30 MHz bandwidth
GPS Receiver
Increase frequency accuracy, geo-tag data collection
Secure data operation
3GPP Signal Analyzers
LTE, GSM/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSDPA
3GPP2 Signal Analyzers
CDMA2000 1X, CDMA2000 1xEV-DO
IEEE 802.16 Signal Analyzers
Fixed WiMAX, Mobile WiMAX
